Main technical features
1. Underground installation, when the lift is lowered to the lowest point, the workshop floor is clean and unobstructed;
2. Scalable platform design allows your lift to easily serve more vehicle models;

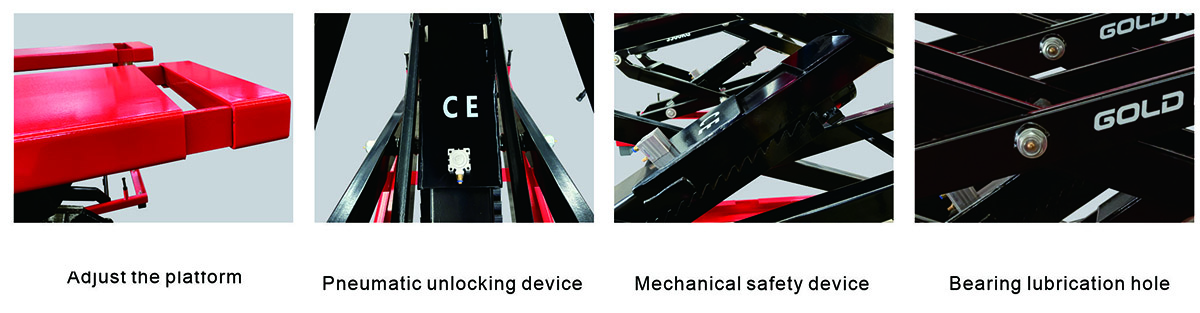

3. Pneumatic unlocking device minimizes machine operating noise to the greatest extent possible;
4. Dual cylinder design, easier debugging;
5. Safety voltage control system to avoid the danger of high voltage electric shock;
6. After 115% dynamic loading test and 150% static loading test;
7. Complies with CE standards;
Model | YQJ-3500 |
Lifting capacity | 3500KG |
Minimum height | 300mm |
Lifting Height | 1800mm |
Motor power | 2.2KW |
Gas source requirements | 6-8bar |
Rated oil pressure | 16-18MPa |
Lifting time | ≤50s |
Power requirements | Customized according to customer requirements |
